Order code not found. You may mean this product:
231-1

231 1

Available variations
Compare product

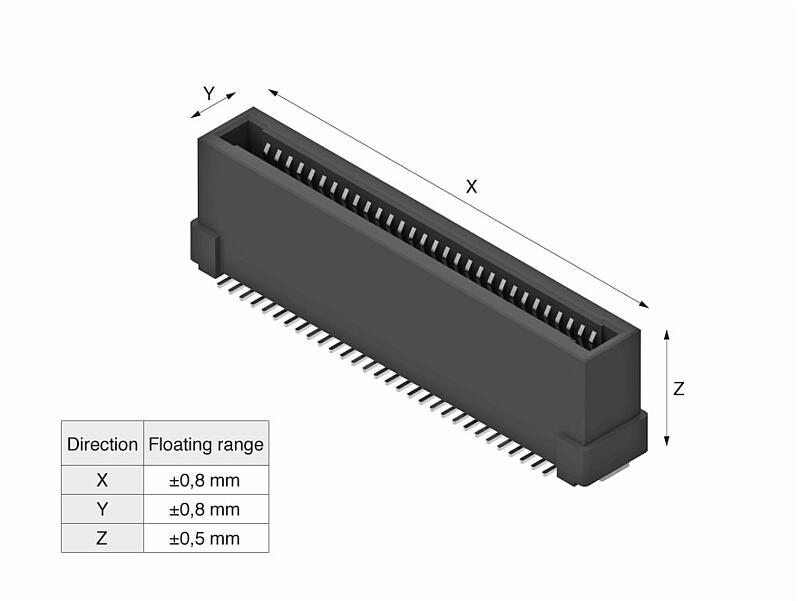

Illustration 231  1
Technical data
Moreless
Pitch (mm) 0,80
Pincount 60, 80
Material contact Phosphor bronze
Plating contact Au
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 0,5 A
Withstand voltage 250 VAC for 1 minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Vertical Vertical
Cap With kapton tape
Packaging Reel
