Order code not found. You may mean this product:
228-1

Your search was with an old part number. Here is the actual version.
Compare product

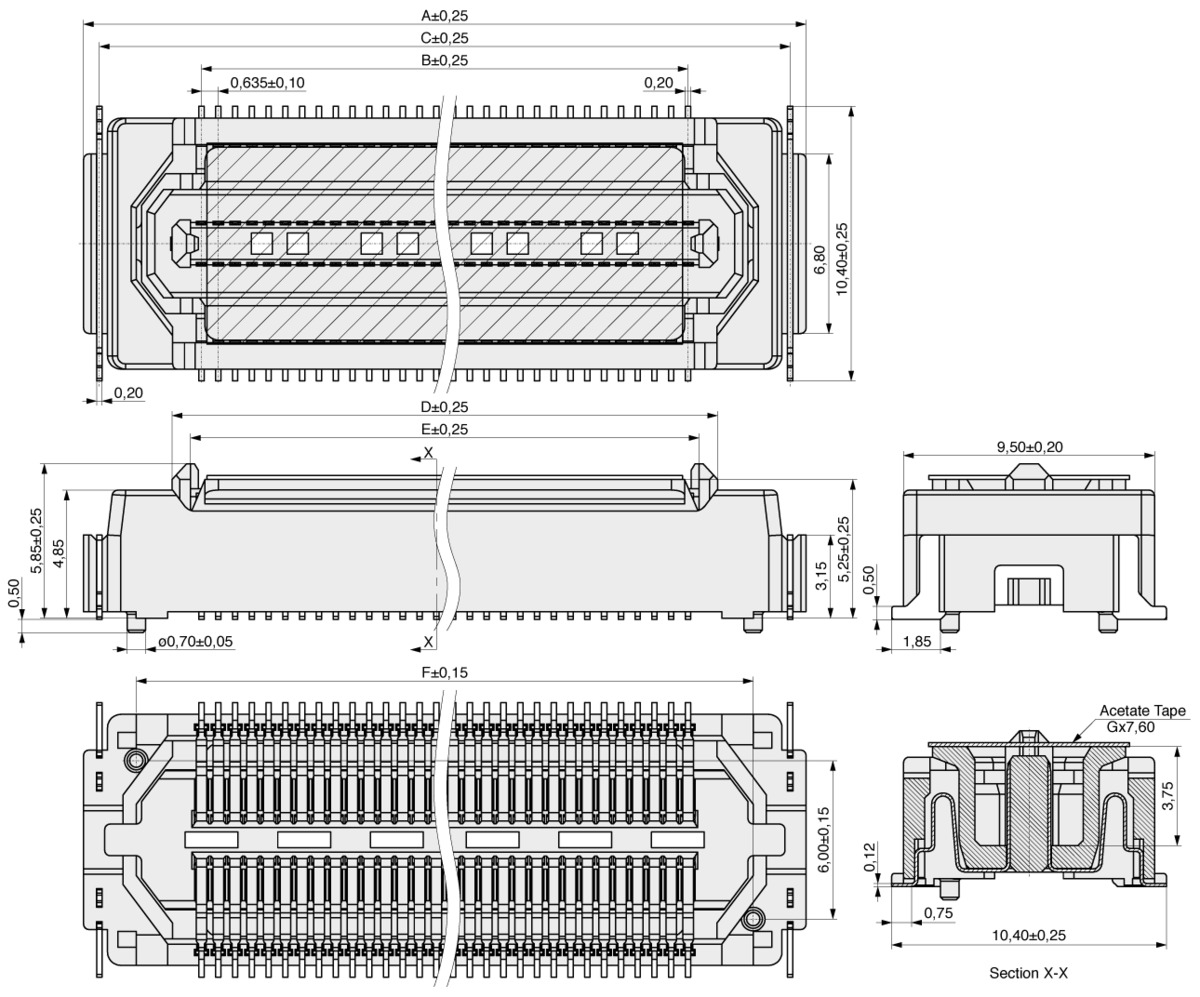

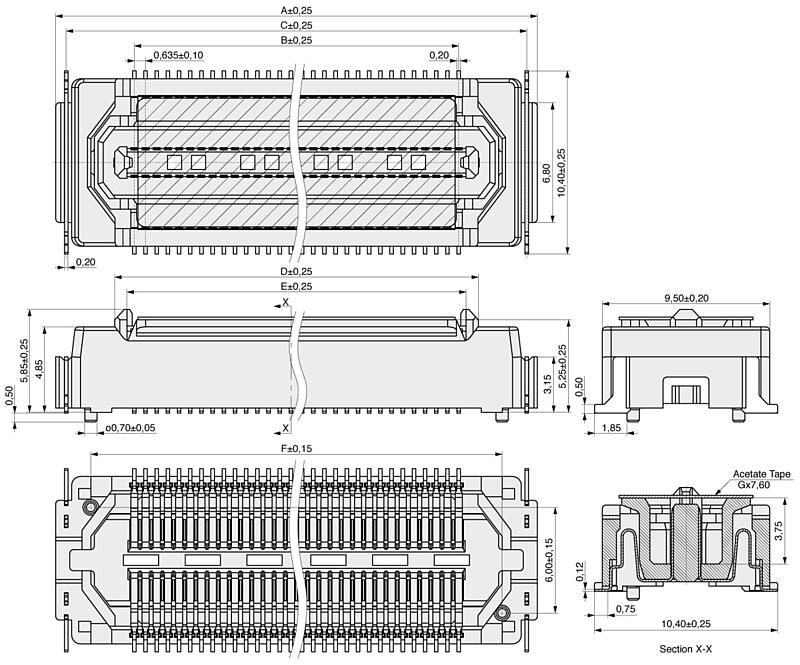

Illustration
Technical data
Moreless
Pitch (mm) 0,635
Pincount 30, 40
Material contact Phosphor bronze
Plating contact Au
Material insulator High temp. thermoplast UL94V-0
Rated current IEC 0,5 A
Withstand voltage 250 VAC for 1 minute
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
Board termination SMD Gull Wing SMD Gull Wing
Orientation to PCB Vertical Vertical
Cap With kapton tape
Packaging Reel
