Technische Daten
mehrweniger| Polzahl | 9, 15, 21, 25 ... 37 |
| Isoliermaterial | Thermoplast UL94V-0 |
| Betriebstemperatur | -40°C bis +105°C |
| Verpackung | Standard |

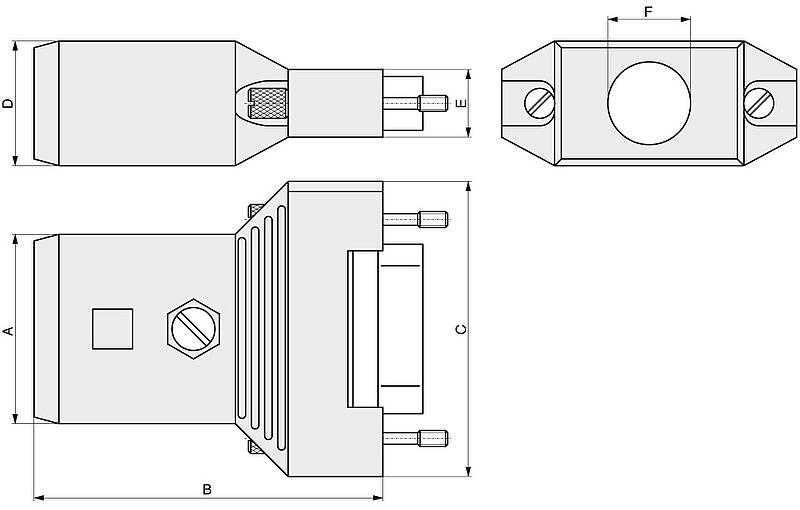

Zeichnung / Abmessungen
mehrweniger
| Polzahl | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 009 | 11,2 | 35,0 | 22,0 | 10,0 | 6,8 | 6,0 |
| 015 | 15,0 | 35,0 | 25,8 | 12,0 | 6,8 | 7,0 |
| 021 | 19,0 | 35,0 | 29,6 | 12,5 | 6,8 | 8,3 |
| 025 | 21,4 | 35,0 | 32,2 | 13,0 | 6,8 | 9,0 |
| 031 | 25,2 | 35,0 | 36,0 | 15,0 | 6,8 | 9,8 |
| 037 | 29,0 | 35,0 | 39,8 | 15,0 | 6,8 | 10,3 |
