Technische Daten
mehrweniger| Verpackung | Standard |
| Polzahl | 4, 5, 6, 7 ... 100 |
| Raster (mm) | 0,50, 0,80, 1,00, 1,25 ... 2,54 |
| S1 (Kontakt) | 3 mm, 4 mm, 5 mm, 6 mm |
| S2 (Kontakt) | 3 mm, 4 mm, 5 mm, 6 mm |
| S3 (Isolationsverstärkung) | 3 mm, 4 mm, 5 mm, 6 mm |
| S4 (Isolationsverstärkung) | 3 mm, 4 mm, 5 mm, 6 mm |
| FFC Flexibilität | Flexibel (Ct = 0,05), Standard (Ct = 0,1), Super Flexibel (Ct = 0,035) |
| Foliendicke im Steckbereich (T) | 0,3 mm |

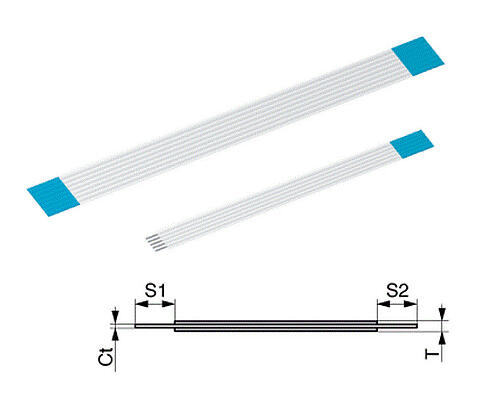

Zeichnung / Abmessungen
mehrweniger
| Raster (mm) | FFC Flexibilität | Polzahl |
|---|---|---|
| 0,30 | Flexible (Ct = 0,05) | 021-100 |
| 0,30 | Super flexible (Ct = 0,035) | 021-100 |
| 0,50 | Standard (Ct = 0,1) | 006-090 |
| 0,50 | Flexible (Ct = 0,05) | 006-090 |
| 0,50 | Super flexible (Ct = 0,035) | 006-090 |
| 0,80 | Standard (Ct = 0,1) | 005-080 |
| 0,80 | Flexibel (Ct = 0,05) | 005-080 |
| 1,00 | Standard (Ct = 0,1) | 004-070 |
| 1,00 | Flexible (Ct = 0,05) | 004-070 |
| 1,00 | Super flexible (Ct = 0,035) | 004-070 |
| 1,25 | Standard (Ct = 0,1) | 004-070 |
| 1,25 | Flexible (Ct = 0,05) | 004-070 |
| 1,27 | Standard (Ct = 0,1) | 004-070 |
| 2,00 | Standard (Ct = 0,1) | 004-035 |
| 2,54 | Standard (Ct = 0,1) | 004-033 |
