Order code not found. You may mean this product:
596-2

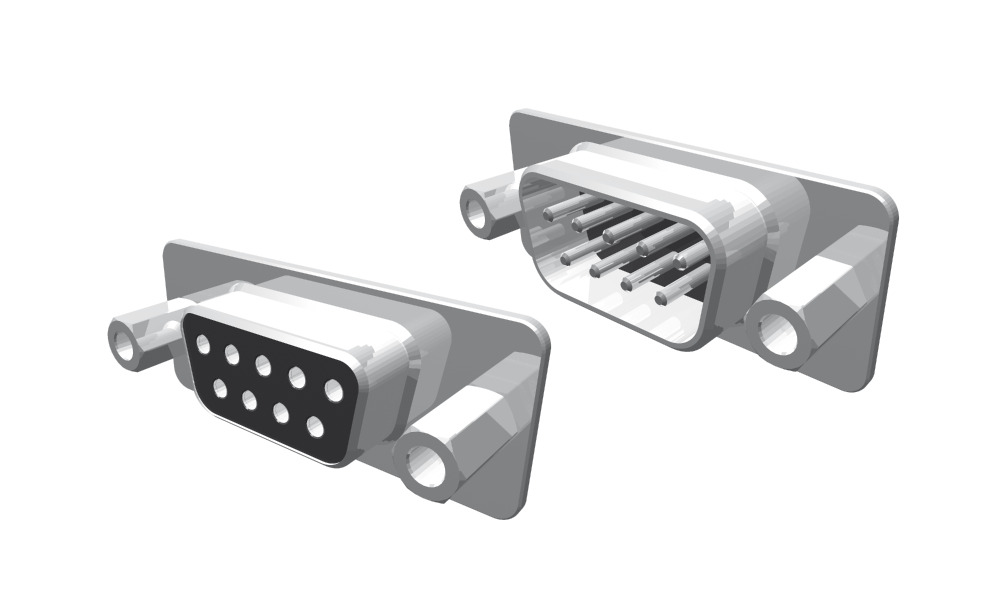

D-SUB Straight, Elevated / Through Hole Mount, Solder Cup, Press-Fit Series 596 Variant 2

DSUB, D-SUB Straight, Elevated / Through Hole Mount, Solder Cup, Press-Fit

D-SUB straight version. A wide range of mounting accessories is available.

Available variations
Compare product
Technical data
Moreless
Pincount 9, 15, 25, 37
Material contact Copper alloy
Plating contact Selective Au
Material insulator Thermoplast UL94V-0
Rated current 5,0 A
Rated voltage 150 V RMS / V DC
Withstand voltage 500 V RMS for 1 Minute
Operating temperature -55°C to +85°C
Max. processing temper. 230°C for 10 seconds
Board termination Through hole Through hole
Orientation to PCB Vertical Vertical
No of rows 2
Industry standard DSUB
Mounting option DSUB No accessories, Rivet #4-40, Rivet #4-40 + boardlock, Rivet #4-40 + boardlock + jack screw, Rivet #4-40 + jack screw
Color black, blue, white
Plating shell Ni, Sn
Packaging Standard
Pincount
009
015
025
037
