  1. Products
  2. Battery contacts
  3. Positive Enclosure Contact- Cell Height: 5.0mm or taller Series 240
Order code not found. You may mean this product:
204-04

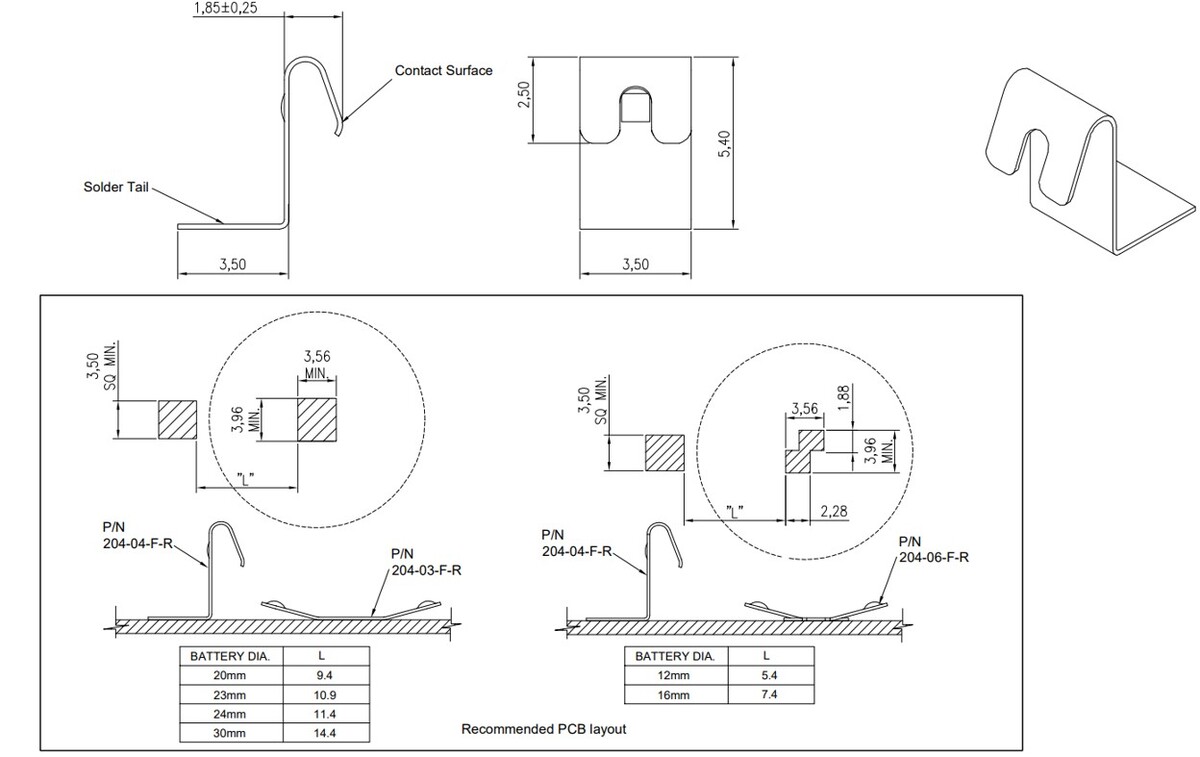

Positive Enclosure Contact- Cell Height: 5.0mm or taller


Your search was with an old part number. Here is the actual version.
Compare product
Technical data
Moreless
Plating contact Flash gold over nickel
Board termination SMT
Orientation to PCB 90°
Material Stainless steel

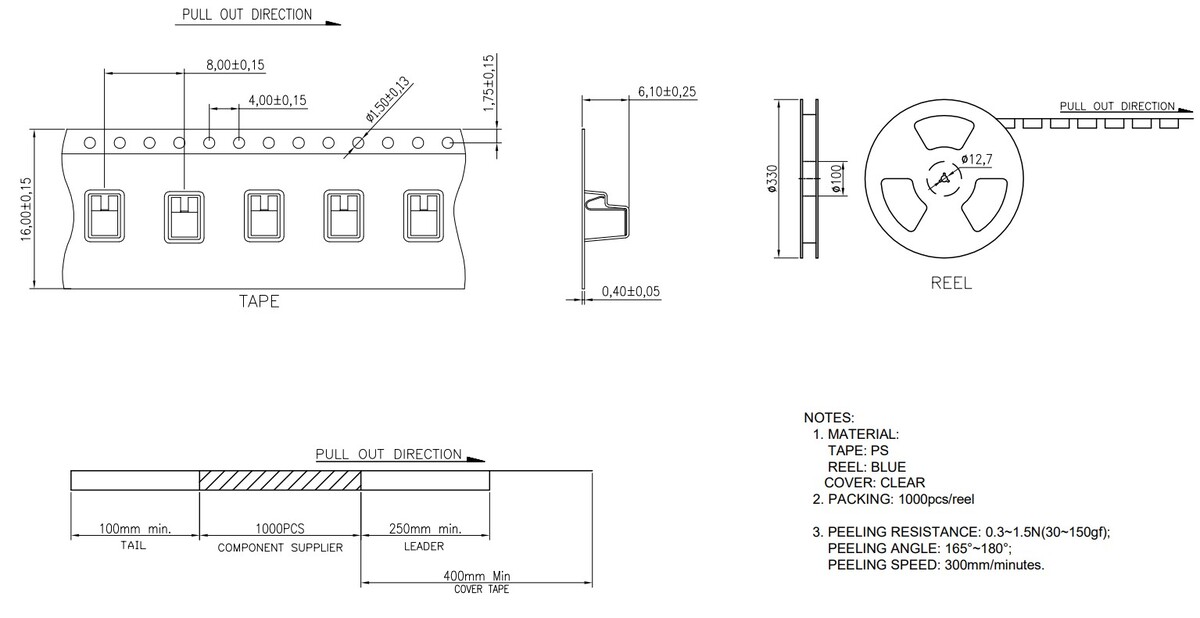

Packaging Reel, 1000 St.
Polarity Positive
Battery diameter 12 mm to 30 mm
Battery height 5.0 mm or taller
1 2
Configurate Your Product
Order code
240-04-F-R
